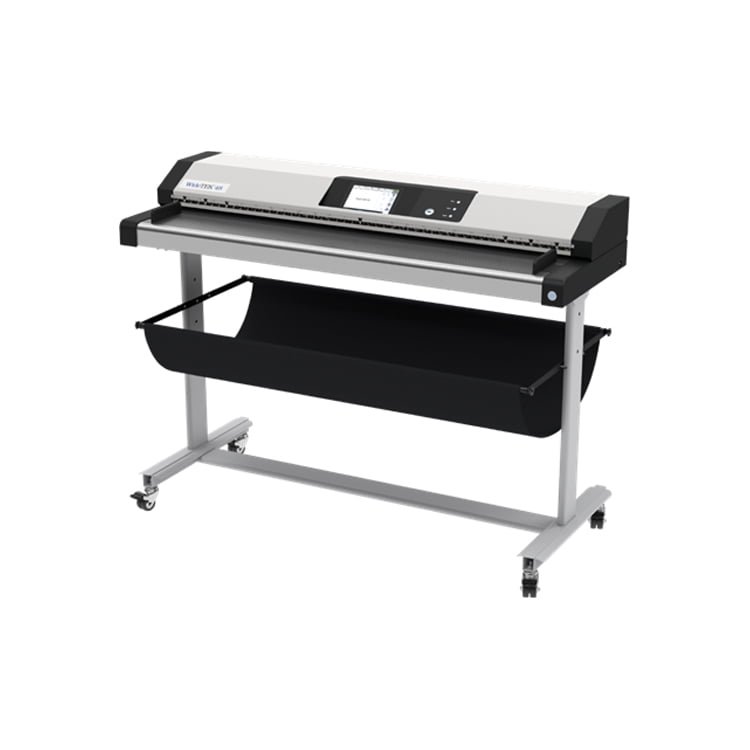

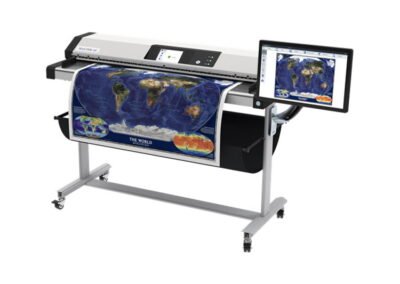

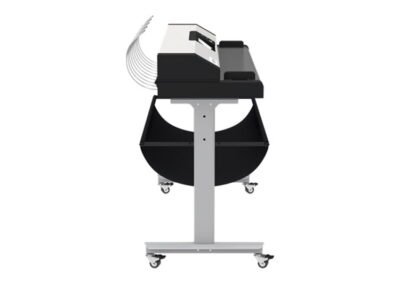

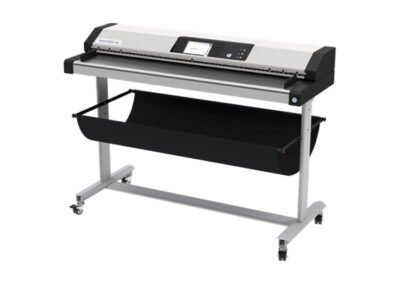

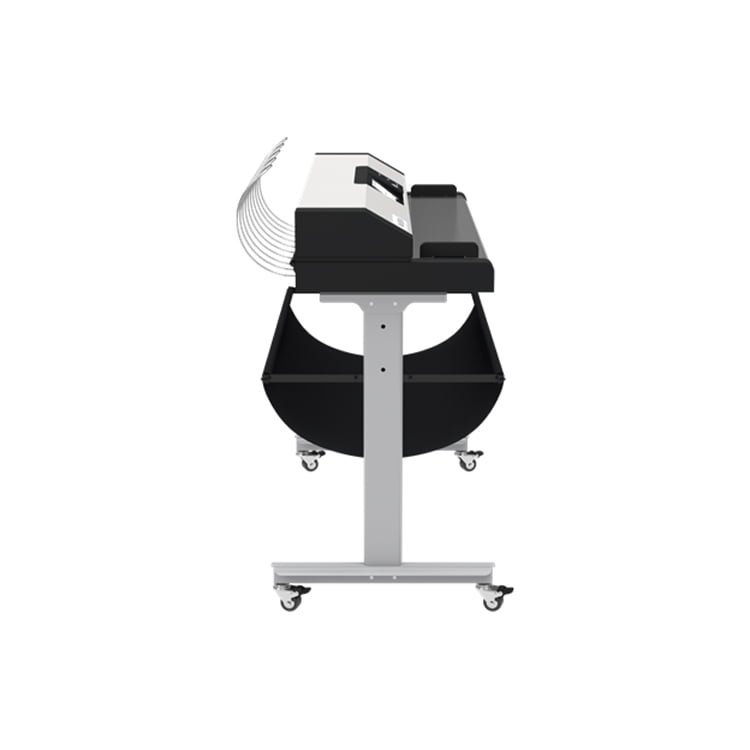

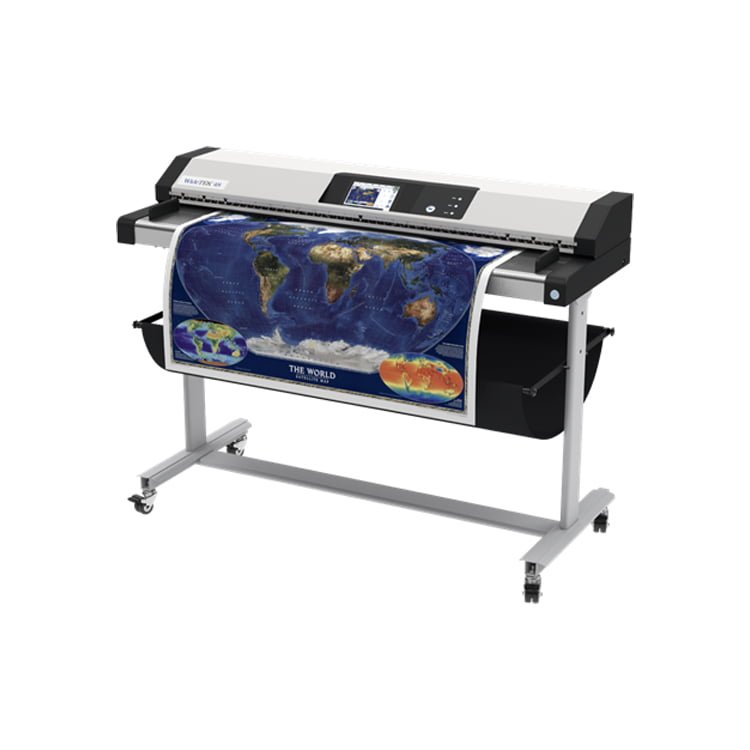

Image Access WideTEK 48-600
WideTEK® 48-600 Wide Format CCD Scanner – Functions and Features
Functions, features and options available on the WideTEK® 48 wide format CCD scanner.
WideTEK® 48-600 Wide Format CCD Scanner – Functions
· Scans 48 inch widths
· Fastest color scanning at 15 inches per second (22.9 m/min) @ 150 dpi
· 1200 x 1200 dpi scanner resolution
· Automatic crop & deskew
· Automatic format- and position recognition of source document anywhere on the scanning bed
· Virtual rescan, modify images without rescanning
· Configurable scan templates and target templates
· Face up scanning (no more “blind”scanning)
· Real time display of scanned images
· Wide color gamut, supports Adobe RGB, sRGB and native RGB
· Standalone device with its own Linux PC
· Direct output to the integrated USB-Port
· Scan2Net — Output to SMB, FTP, Printer, eMail
· Output formats: Multipage PDF (PDF/A) & TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG) and many more
· Complies to FADGI *** guidelines, ISO 19264-1
WideTEK® 48-600 Wide Format CCD Scanner – Features
· LED lamps, no warm up, IR/UV free
· Large color 22 inch touchscreen for direct operation without external PC
· ScanWizard — integrated scan application for use with any browser: IE, Edge, Safari, Chrome, Firefox
· Multilanguage support, customizable user interface
· Closed loop calibration software
· Durable, antistatic, all metal paper path
· Virus resistant Linux OS
· OS independent, runs with Windows 8, 10, Linux, Mac
· Gigabit Ethernet Interface
· Integrated walk up scanning software
· Easy installation via Scan2Net® Technology
· Remote maintenance and troubleshooting
· Firmware updates via web interface
Scanner Type: simple
Scanning color mode: Color
Document Size: A0
Scanning Speed: Wide format Scanning Speed
Capacity: Single Sheet
Maximum Document Size: 1270 mm (50 inch) width. Information about the maximum scan length in the technical specification.
Maximum Scan Width: max. 1220 mm (48 inch)
Document Thickness: max. 3.0 mm (0.1 inch)
Autoformat Size Recognition: yes
DIN Format: DIN A5 - DIN A0
ANSI Format: Legal, US E
User Defined Format: yes
Scanner Resolution: 1200 x 1200 dpi (optionally 9600 x 9600 dpi interpolated)
Pixel Dimension: 9.3 x 9.3 µm
Paper Path: Face up, Front entry, Front or rear exit
Scan Speed Color: "200 dpi - 17 m/min (11.2 inch/s) 300 dpi - 11.4 m/min (7.5 inch/s) 600 dpi - 4.6 m/min (3 inch/s) 1200 dpi - 2.3 m/min (1.5 inch/s)"
Scan Speed BW: Same as 24 bit Color
Color Depth: 48 bit color, 16 bit grayscale
Scan Output: 24 bit color, 8 bit grayscale, bitonal, enhanced halftone
File Formats: "Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu, DICOM, PCX, Postscript, EPS, Raw data and more"
ICC Profiles: Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription.
Quality: Complies to FADGI *** guidelines, ISO 19264-1
Scan direction: ± 0.08% across 48 inch scanning width
Transport direction: ± 0.08%
Computer: "64 bit Linux, Intel® Core Gen 9 processor, 250GB SSD, 16GB RAM for very long scans"
Touchscreen: 7 inch multi-touch display
USB Port: 1 USB 3.0 Port
Interface: 1 GBit Fast Ethernet with TCP/IP based Scan2Net interface
Camera: 4x Tri-color CCD camera, 90,000 pixels, encapsulated and dust-proof
Light Source: "Two linear lamps with white LEDs, no IR/UV emission Declaration about the Emission of UV and IR radiation"
Dimensions Scanner (H x W x D): 228 x 1425 x 507 mm (9 x 56 x 20 inch)
Weight Scanner: 60 kg (132 lbs.)
Electrical Connection: "100-240 V AC, 47 - 63 Hz (external power supply, complies with ECO standard CEC level VI)"
Power Consumption: "< 0.5 W (Sleep) / 6.5 W (Standby) / 60 W (Ready to Scan) / < 120 (Scanning)"
Operating Temp: 5 to 40 °C (40 to 105 °F)
Rel Humidity: 20 to 80 % (non-condensing)
Noise: < 35 dB(A) (Scanning) / < 25 dB(A) (Standby)
Monitor Options: WT-TOUCH22
Stand Options: WT48-STAND, WT48-STAND-ADJ
Optical Resolution: 1200 x 600 dpi

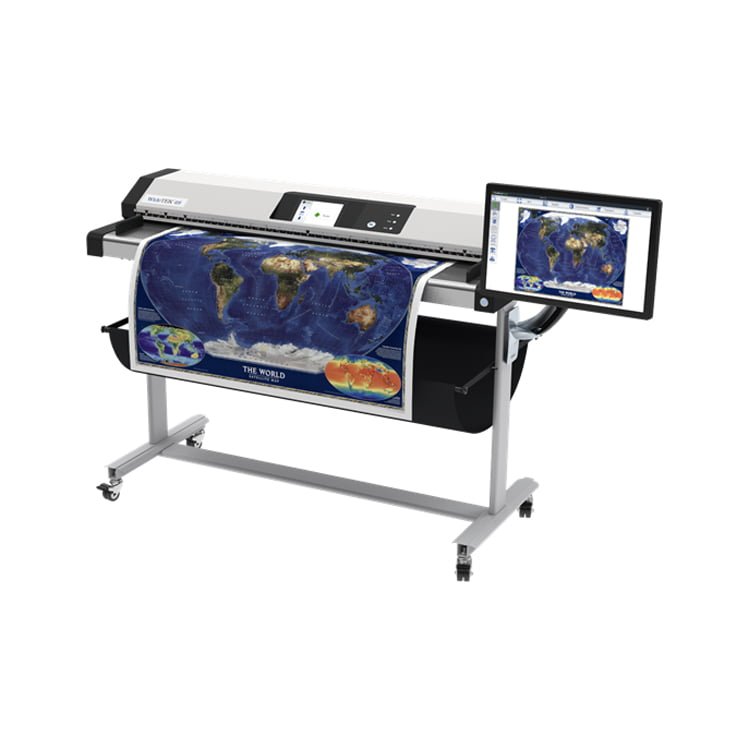

Monitor: 22 inch touchscreen with arm (included in the bundle)
Lamp Lifetime: 50,000 hours typ. Lamps are covered by the Extended Warranty Option
