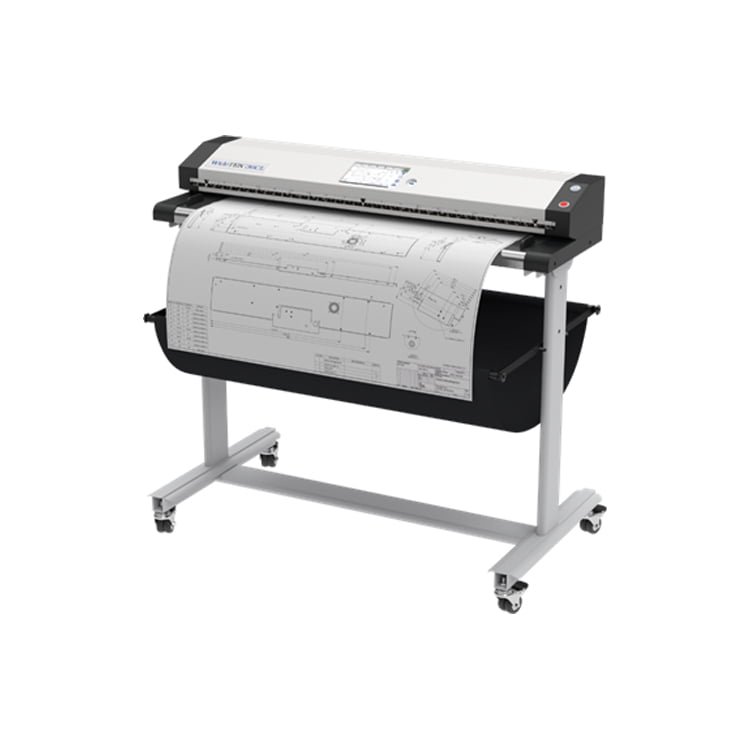

Image Access WideTEK 36CL-600
WideTEK® 36CL-600 Functions & Features
Functions, features and options available on the WideTEK® 36CL-600 wide format CIS scanner.
WideTEK® 36CL-600 Functions
· Scans 36 inch widths, nearly unlimited length
· Complies to FADGI *** guidelines and ISO 19264-1
· Fastest color scanning at 10 inches per second (15 m/min) @ 200 dpi
· 1200 x 1200 dpi scanner resolution
· Automatic crop & deskew
· On the fly rotation while scanning facilitates postprocessing
· Face up scanning (no more “blind” scanning)
· Real time display of scanned images, modify images without rescanning
· Standalone device with its own Linux PC
· Scan2USB — Walk up Scanning to any USB device via USB
· Scan2Print — Copy to networked printers or hot folders
· Scan2Network — Output to network resources, SMB, FTP
· Output formats: Multipage PDF (PDF/A) &TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,TIFF (Raw, G3, G4, LZW, JPEG) and many more
· Scan2Pad® — Operation via tablet, smartphone or other mobile device
WideTEK® 36CL-600 Features
· LED lamps, no warm up, IR/UV free

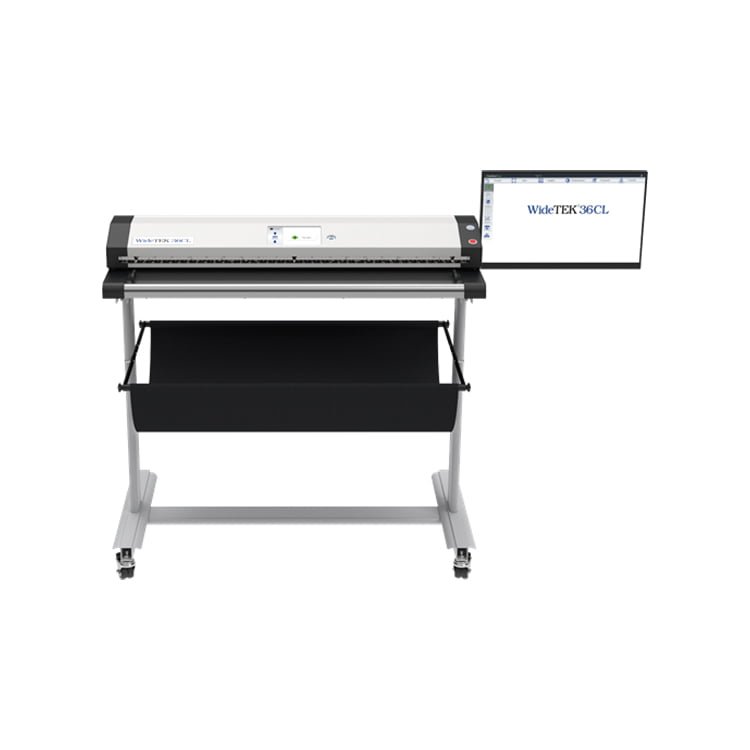

· Large 21 inch full HD color multitouch screen for simplified operation (included in the bundle)
· User interface configurable in your language
· Virus resistant Linux OS
· OS independent, runs with Windows 8, 10, Linux, Mac
· ScanWizard uses any browser: IE, Safari, Chrome, Firefox
· Integrated walk up scanning software
· Easy installation via Scan2Net® Technology
· Remote maintenance and troubleshooting
· Firmware updates via web interface
· Dust-free camera technology
Scanner Type: simple
Scanning color mode: Color
Document Size: A0
Scanning Speed: Wide format Scanning Speed
Capacity: Single Sheet
Maximum Document Size: 965 mm (38 inch) width
Maximum Scan Width: max. 915 mm (36 inch)
Document Thickness: max. 2.5 mm (0.1 inch)
Autoformat Size Recognition: yes, crop & deskew
DIN Format: DIN A5 - DIN A0
ANSI Format: Legal, US E
Scanner Resolution: 1200 x 1200 dpi (optionally 9600 x 9600 dpi interpolated)
Pixel Dimension: 42 x 42 µm
Paper Path: Face up, Front entry, Front or rear exit
Scan Speed Color: 200 dpi - 15 m/min (10 inch/s) 300 dpi - 10.2 m/min (6.7 inch/s) 600 dpi - 2.5 m/min (1.7 inch/s) 1200 dpi - 1.2 m/min (0.8 inch/s)
Scan Speed BW: 200 dpi - 22.9 m/min (15 inch/s) 300 dpi - 22.9 m/min (15 inch/s) 600 dpi - 8 m/min (5 inch/s) 1200 dpi - 3.8 m/min (2.5 inch/s)
Color Depth: 48 bit color, 16 bit grayscale
Scan Output: 24 bit color, 8 bit grayscale, bitonal, enhanced halftone
File Formats: Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu, DICOM, PCX, Postscript, EPS, Raw data and more
ICC Profiles: Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
Quality: Complies to FADGI *** guidelines and ISO 19264-1
Scan direction: ± 0.08% across 36 inch scanning width
Transport direction: ± 0.08% with new transport rollers
Computer: 64 bit Linux, Intel quad core processor, 8 Gigabyte RAM, 128GB SSD for very long scans
Touchscreen: 7 inch color WVGA (wide VGA) touchscreen, 21” full HD 1920 * 1080 multitouch screen (included in the bundle)
USB Port: 1 USB 3.0 port
Interface: 1 GBit Fast Ethernet with TCP/IP based Scan2Net interface
Camera: 3x CIS modules, 22,389 pixels, encapsulated and dust-proof
Light Source: RGB LED Declaration about the Emission of UV and IR radiation
Dimensions Scanner (H x W x D): 170 x 1088 x 358 mm (7 x 43 x 14 inch)
Weight Scanner: 24 kg (53 lbs.)
Electrical Connection: 100-240 V AC, 47 - 63 Hz (external power supply, complies with ECO standard CEC level VI)
Power Consumption: < 0.5 W (Sleep) / approx. 5.2 W (Standby) / < 25 W (Ready to scan) / < 45 W (Scanning)
Operating Temp: 5 to 40 °C (40 to 105 °F)
Rel Humidity: 20 to 80% (non-condensing)
Noise: < 35 dB(A) (Scanning) / < 25 dB(A) (Standby)
Monitor Options: WT-TOUCH21, WT-TOUCH22
Stand Options: WT36-STAND, WT36-STAND-ADJ
