BookTEK® 5 V2 Book Scanner Functions & Features
Functions, features and options available on the BookTEK 5 V2 book scanner.
BookTEK® 5 V2 Book Scanner Functions
· Color overhead scanner for A2+ formats
· High resolution line sensor with 400 x 400 dpi scanner resolution (600 x 600 dpi optional)
· Maximum Document Size 460 x 620 mm (18 x 24 inch)
· Operation in dark mode enhances scan quality and improves operation through less light reflection
· Live preview function shows the document position in live video for optimal placement

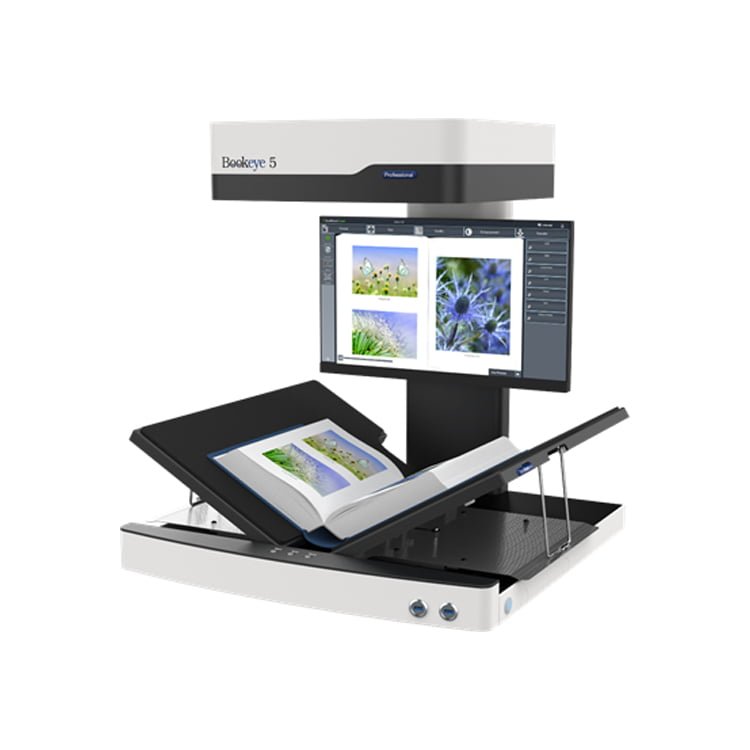

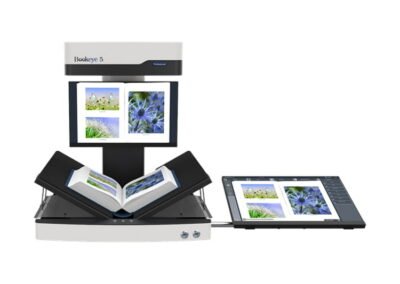

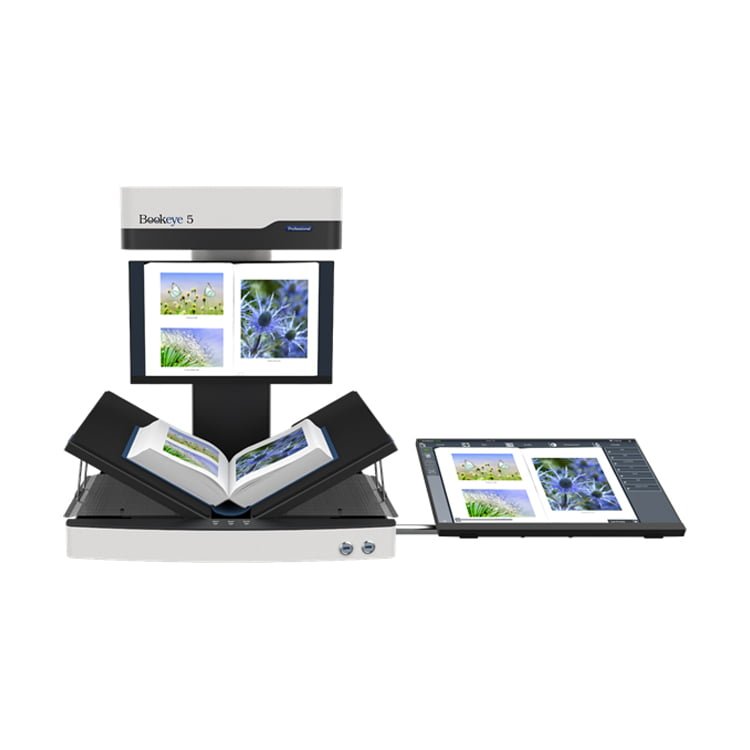

· Magnetically coupled V-shaped book cradles 120 – 180 degrees
· Laser assisted book fold correction – Scan bound documents without annoying shadows
· Optimize images without rescanning, real time display of scanned images
· Automatic finger and thumb removal
· Automatic Crop & Deskew
· Digital color balance – wide color gamut: supports sRGB, Adobe RGB, native RGB
· Automatic white balance and black value
· Scan2USB — Direct output to the integrated USB-Port
· Scan2Net® — Output to SMB, FTP, Printer, Email
· Output formats: Multipage PDF (PDF/A) &TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
· TIFF (Raw, G3, G4, LZW, JPEG) and many more
BookTEK® 5 V2 Book Scanner Features
· Easy three button operation: Start — Scan — Send
· 2 x USB 3.0 port accessible on the front panel

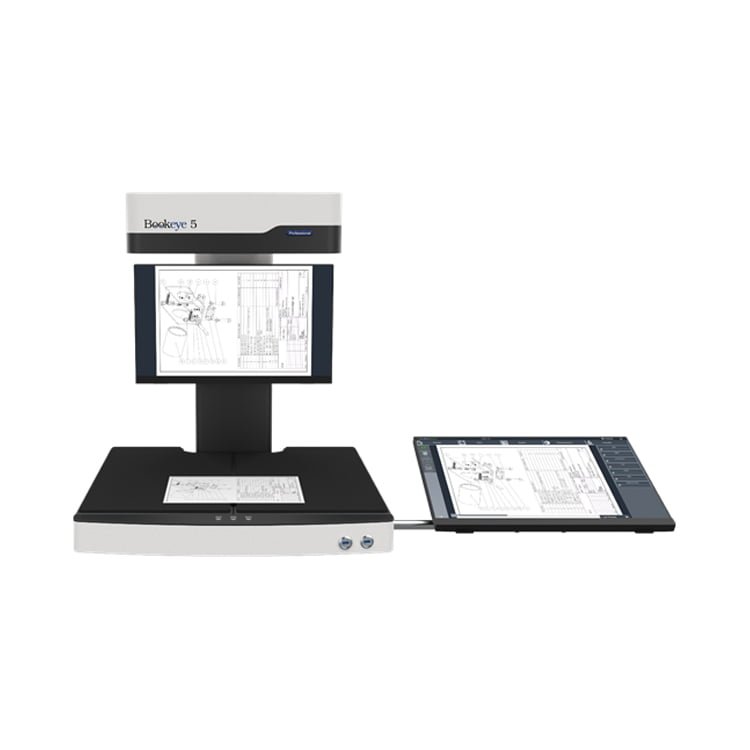

· Large 21 inch full HD color multitouch screen for simplified operation, 2nd preview screen optional
· Smallest possible footprint, sits on any desktop or workspace
· User interface configurable in over 20 languages
· Intel Quad Core i3 Gen.8 240 GB SSD, 8GB RAM
· LED lamps, no warm up, IR/UV free
· Can be used as a standalone device without an external PC
· Virus protected 64 bit Linux operating system
· OS independent, runs with Windows 8, 10, Linux, Mac
· Uses any browser: IE, Safari, Chrome, Firefox
· Scan2Net® technology
· Complies to FADGI *** guidelines, Metamorfoze Light and ISO 19264-1
· Remote maintenance and analysis
· Simple installation – scan minutes after taking it out of the box
Scanner Type: simple
Scanning color mode: Color
Document Size: A2
Scanning Speed: Book Scanning Speed
Capacity: Book Capacity
Maximum Document Size: 460 x 620 mm (18 x 24 inch), 14% more than DIN/ISO A2
Scanner Resolution: 400 x 400 dpi (optionally 600 x 600 dpi)
Pixel Dimension: 9.3 x 9.3 µm
Scan Speed Color: DIN A2+ @ 150 dpi: 0.9 s DIN A2+ @ 200 dpi: 1.1 s DIN A2+ @ 300 dpi: 1.6 s DIN A2+ @ 400 dpi: 2.0 s DIN A2+ @ 600 dpi: 3.0 s
Color Depth: 48 bit color, 16 bit grayscale
Scan Output: 24 bit color, 8 bit grayscale, bitonal, enhanced halftone
File Formats: Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu, DICOM, PCX, Postscript, EPS, Raw data and more
ICC Profiles: Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
Quality: Complies to FADGI *** guidelines, Metamorfoze Light, ISO 19264-1
Computer: 64 bit Linux, Intel Core i3 generation 8 processor, 240GB SSD, 8 GB memory for extra large jobs
Touchscreen: 21 inch Full HD 1920 * 1080 multitouch screen
USB Port: 1 x USB 3.0 port, 4 x USB 2.0 port
Interface: 1 GBit Fast Ethernet with TCP/IP based Scan2Net interface
Camera: CCD line sensor, 22,500 pixels (11,000 scan lines equals to a 245 MPixel matrix camera)
Live Preview Camera: CMOS matrix, area sensor
Light Source: White LEDs, tested according to IEC 62471, no IR/UV emission Declaration about the Emission of UV and IR radiation
Lamp Lifetime: 50,000 h typ. Lamps are covered by the Extended Warranty Option
Dimensions Scanner (H x W x D): 720 x 655 x 645 mm (28 x 26 x 25 inch)
Weight Scanner: 33 kg (73 lbs.)
Electrical Connection: 100-240 V AC, 47 - 63 Hz (external power supply, complies with ECO standard CEC level VI)
Power Consumption: < 0.5 W (Sleep) / 1.5 W (Standby) / 40 W (Ready to Scan) / 110 W (Scanning)
Operating Temp: 5 to 40 °C (40 to 105 °F)
Rel Humidity: 20 to 80% (non-condensing)
Noise: < 42 dB(A) (Scanning) / < 33 dB(A) (Standby)
