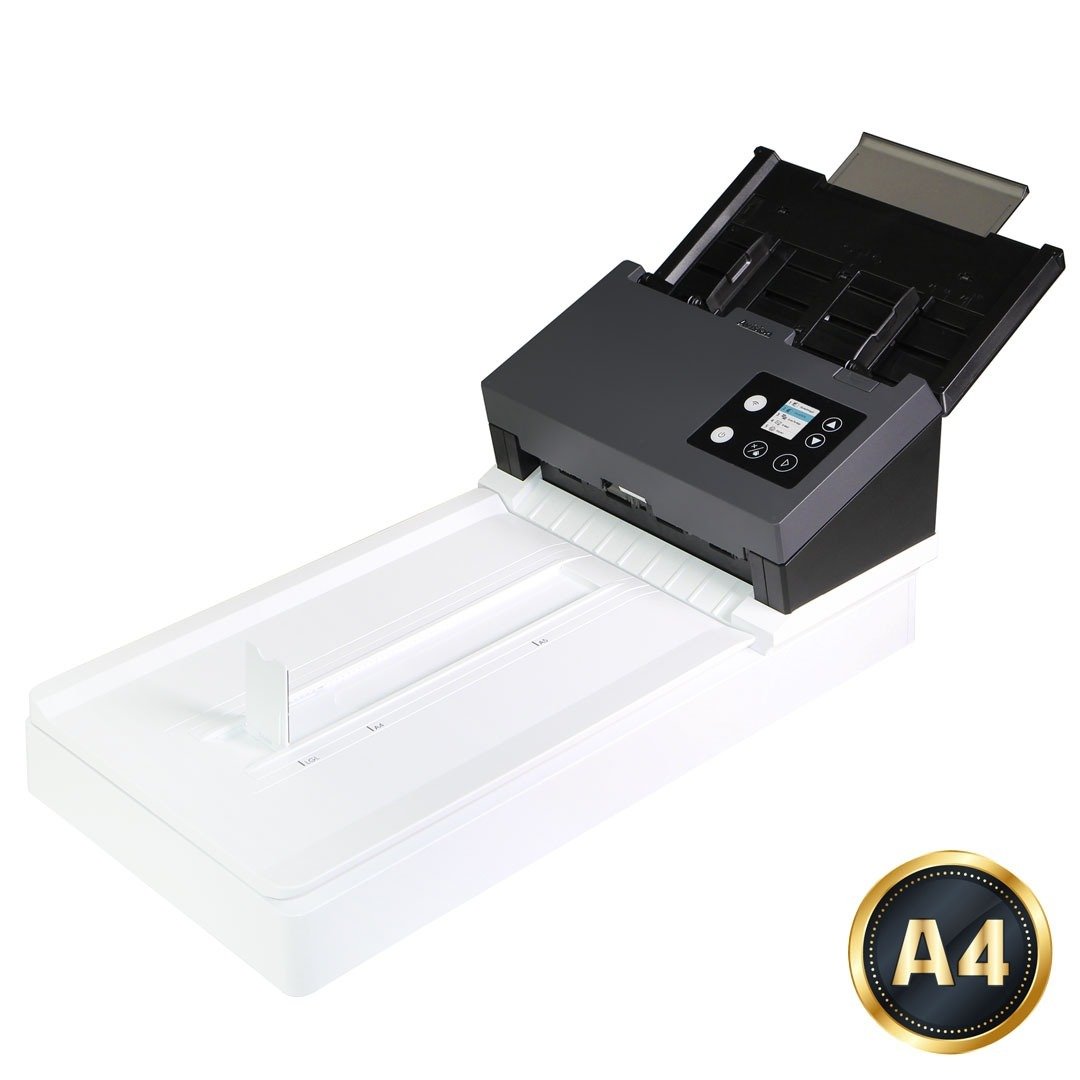

AD3100F

Product Details

▍Built-In Advanced Image Processor

Embedded with Avision-developed image processor, the scanned image can be automatically cropped, straightened, and optimized with enhanced speed.

▍Support form document up to 242 x 356 mm (9.5 x 14 in.)

The AD3100F boast unique and innovative design in comparison with its predecessors – the ability to accommodate form document up to 242 x 356 mm (9.5 x 14 in.). The extended document width from standard 216 mm (8.5 in.) to 242 mm (9.5 in.) makes the AD3100F more competitive to fit for a wider range of documents.

▍Reverse Roller Enhances Feeding Reliability

Designed with the innovative reverse roller for advanced paper separation capability, the AD380F Series delivers outstanding feeding reliability and operating productivity by effectively reducing the risk of a multi-feed or paper jam.

▍Paper Protection Technology

The advanced Paper protection technology protects valuable paper from being wrinkled or torn by halting the scan process once a skewed page is detected.

▍A Duplex Scanner Suited for Document and Cards

Thanks to the advanced straight paper path and image processing technology, mixed batches of documents with varies sizes and weights can be scanned, appropriately cropped, deskewed, and ready to use. Scan size accepts paper from receipts 50 x 50 mm (2 x 2 in.) to business document 242 x 356 mm (9.5 x 14 in.). The auto document feeder is also robust enough to feed paper up to 400 g/m2 (110 lbs) and embossed hard cards such as ID cards, credit cards, driver’s license, and health insurance card up to 1.25 mm thick.

▍Automatic multiple images cropping

In addition, the scanner comes with the convenient feature of multiple images cropping. With this feature, various sizes of documents such as photos, ID Cards, or business cards can be placed on the flatbed and the scanner is able to crop and create multiple images according to the original sizes of the documents in one single scan.

▍Earth-Friendly LED Technology

The AD3100F deliver high throughput and outstanding performance. However, it is earth-friendly at the same time. The LED technology requires no warm up time and is lower power consumption without generating mercury vapor as other traditional scanners using the CCFL (cold cathode fluorescent lamp) technology.

▍High-Volume Daily Duty Cycle

The scanner can be used to scan up to 15,000 pages per day through the 100-page automatic document feeder. The data indicates that this scanner is designed to scan document in any application requiring frequent document and hard card scanning.

▍Powerful bundled software applications

The AD3100F come with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager , AVScan , and PaperPort . With Button Manager , you can scan to searchable PDF, JPEG, BMP, or GIF file format, save to folder on your computer, and scan to e-mail, image editing application, or even a cloud application such as Google Drive, or Microsoft SharePoint with a press of a button. The AVScan and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.

▍Features

• Fast scan rate up to 100 pages per minute and 200 images per minute at 300 dpi in gray, or B&W mode
• Auto crop and deskew a document with the advanced Avision-developed image processing unit to enhance the scanning speed
• 100-page auto document feeder (80 g/m2)
• Reverse roller technology delivers outstanding feeding reliability
• USB 3.1 for high speed transmission
• Ultrasonic multi-feed detection
• Earth-friendly LED technology
• Compact auto document feeder holds documents up to 100 pages
• Easy-to-use button scanning
• Supports 240” (6000 mm, 200 dpi, color duplex ) long page scanning
• Auto power off setting

▎Certification mark

▎Instruction

Icon / LED

User Check
1. Check if the scanner has been connected to a computer via a USB cable.

AD200/300 series scanner

AD6000/8000 series scanner

2. Check if the scanner driver has been installed.
3. Or you may check if the right driver has been successfully installed by choosing Device Manager>Image Device from the Control Panel.

4. Or else try to replace another USB cable.

▎Software

Others: Virtual Scanner Link Does Not Find Your Scanner.

User Check
1. Check if the scanner mode supprot network function and had an IP address. If your scanner is located in difference network segment, add the IP manually on the Virtual Scanner Link.
For example, if the IP of your PC is 10.1.20.xxx and the IP of your scanner is 10.1.30.xxx, then you need to add the scanner’s IP manually.

▎Hardware Related

Error Code 3003: DRAM R/W Test Error.

Icon

User Check
1. Turn your scanner off and on.

2. If the problem still happen, please kindly check the serial number on your scanner label first, then click the following “Ask to help” option to full the form then feedback to us, thanks.

Error Code 2024: NVRAM R/W Test Error.

Icon

User Check
1. Turn your scanner off and on.

2. If the problem still happen, please kindly check the serial number on your scanner label first, then click the following “Ask to help” option to full the form then feedback to us, thanks.
