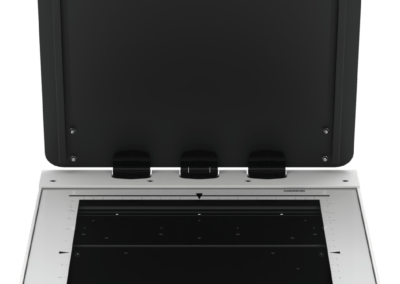

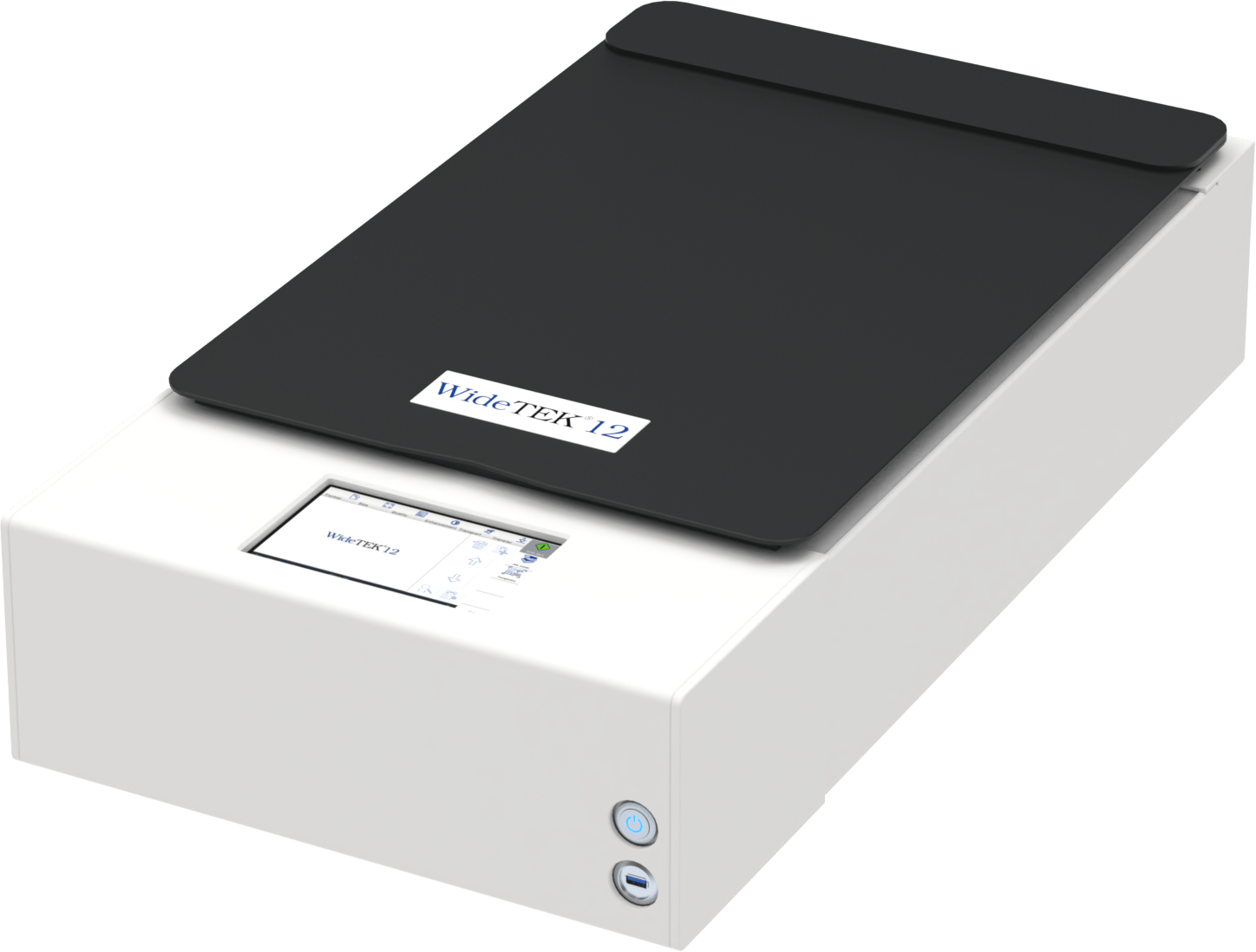

Image Access WideTEK 12-650
Lightning-fast performance
The WideTEK 12-650 is available for applications where A3+ is large enough but fast scanning speed and high optical resolution is required. The scanner needs less than three seconds to scan the largest format of 12.3 x 18.5 inches in normal mode at 300dpi and only 12 seconds in 3D mode at 600dpi, twice as fast as the closest competition.
3D surface scanning
Discover unmatched surface inspection and quality control with the 3D imaging capabilities of our flatbed scanners. Whether examining coins, Braille prints, or SMD components on electronic boards, our WideTEK flatbed scanners capture every detail with exceptional precision.

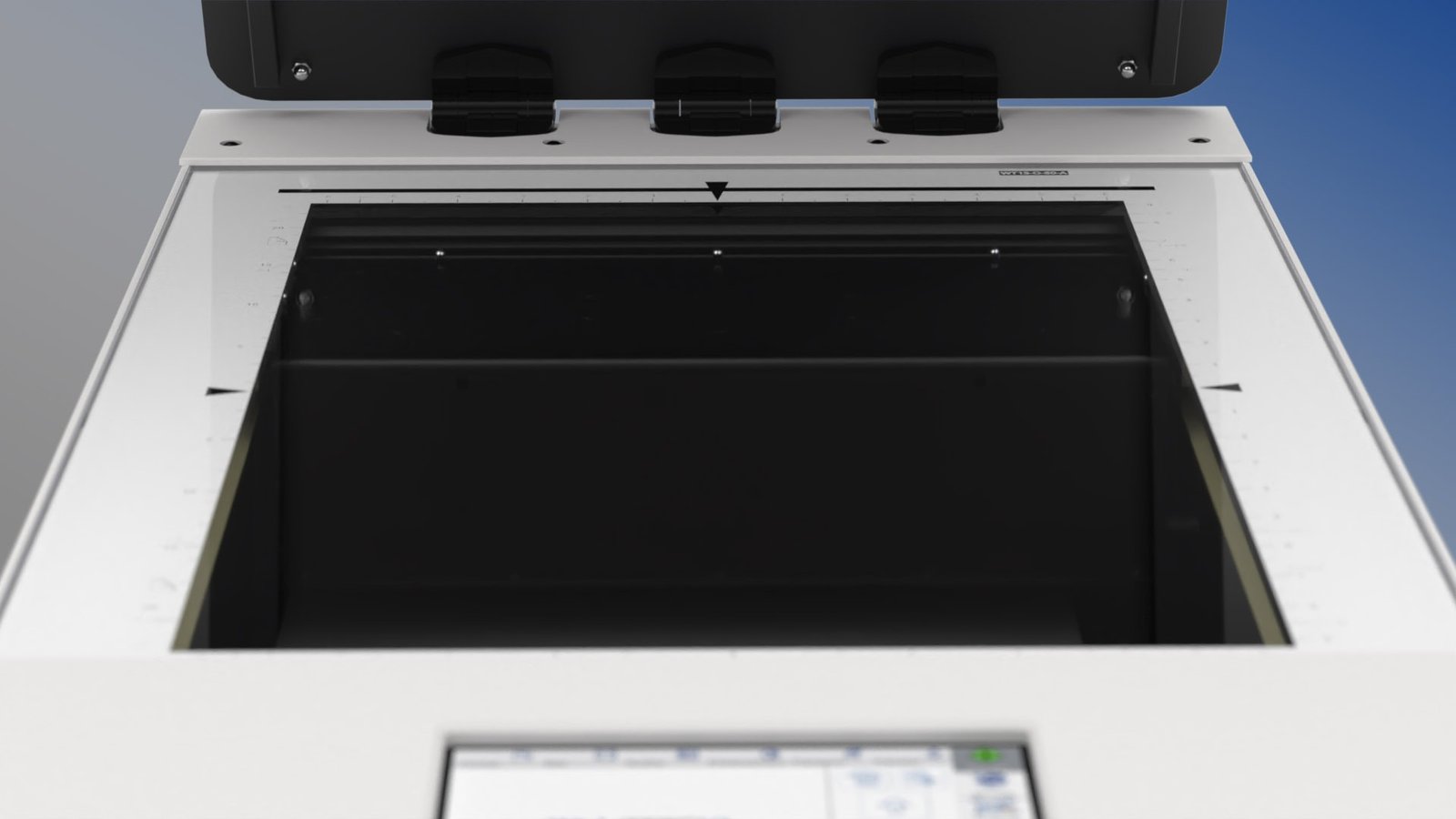

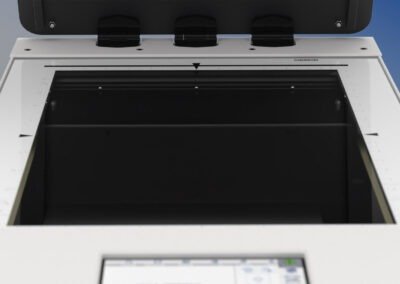

Borderless glatt plate
The scanner’s scratch resistant, non-reflective glass plate has been expanded to reach the edges of the flatbed scanner, making it 100% protective of the documents laid on it. No more bent or folded edges on your source documents.

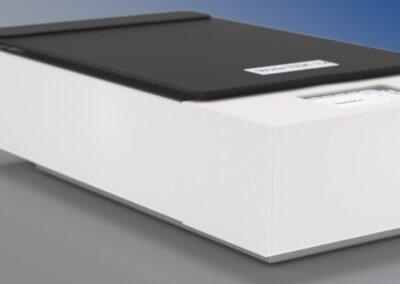

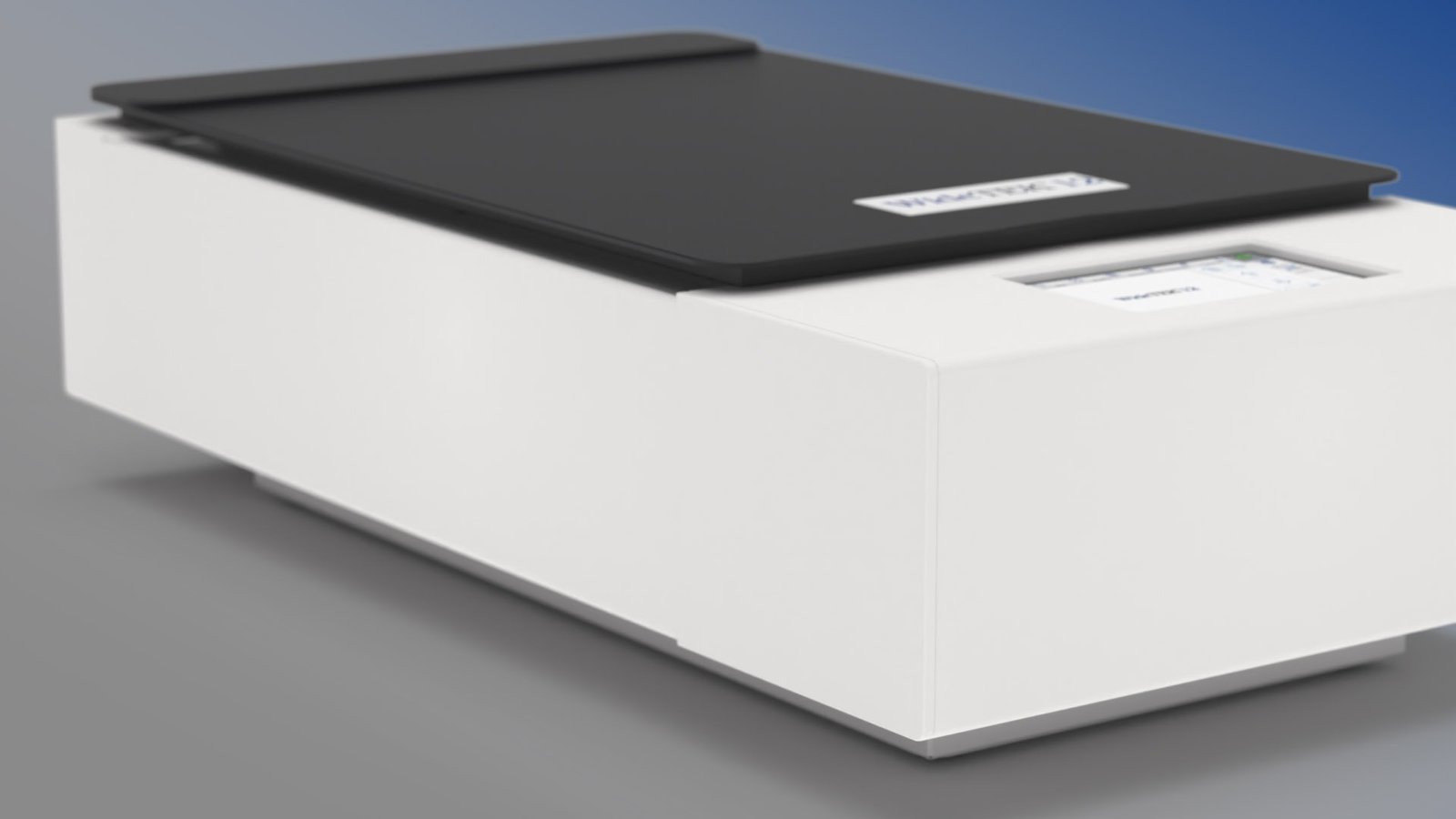

Compact and accessible
The scanner’s footprint is so small that it can be placed on any desktop or workstation. Installation is so simple, you will be scanning within minutes after taking it out of the box. Easy, fast and affordable.

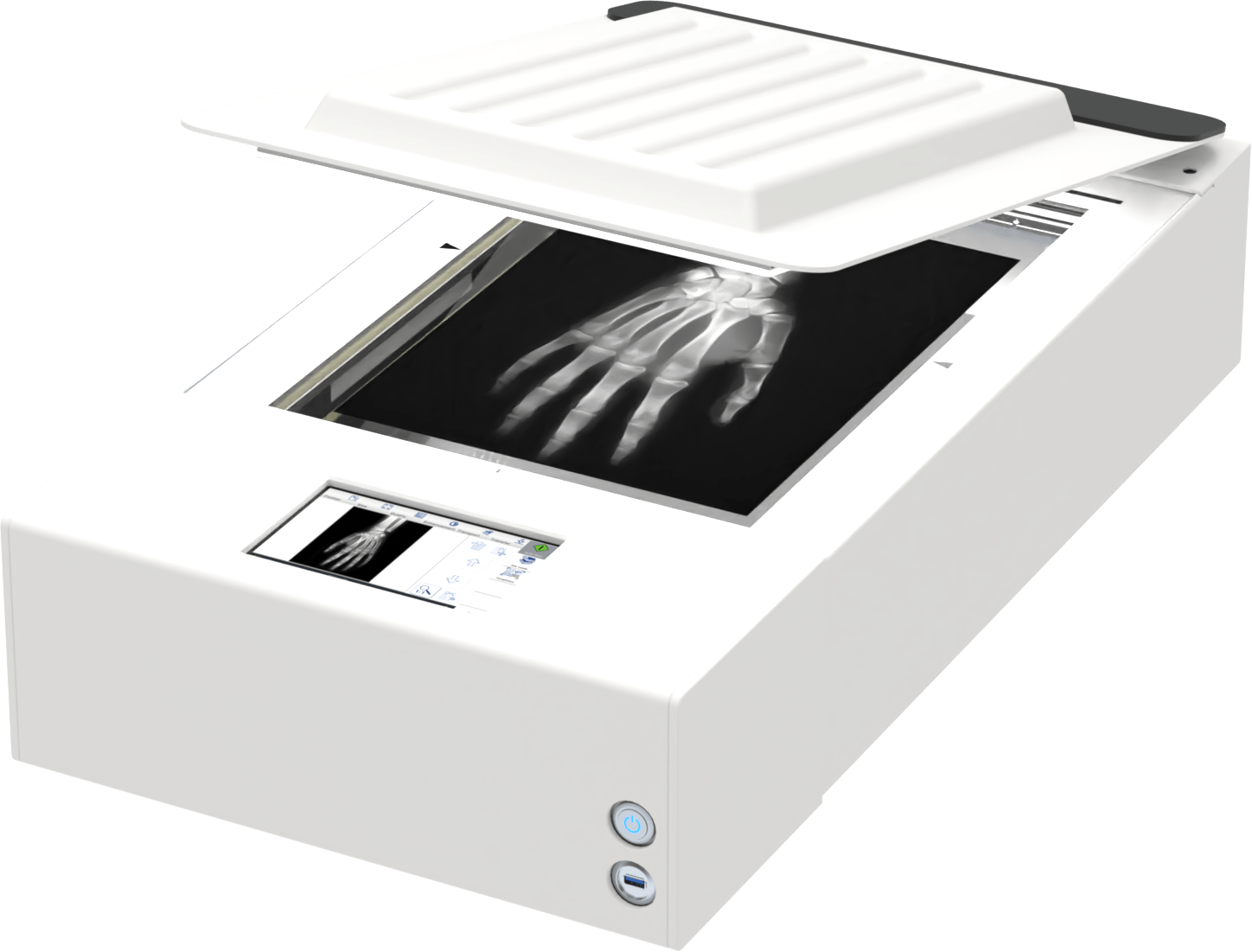

Optional backlight unit
Boost your scanner’s versatility with the BACKLIGHT option, enabling high-quality scanning of transparent material like X-rays, glass negatives, 35mm microfilm aperture cards, cutout stencils, sepias, and film.
Powerful software
Achieve exceptional scanning results with advanced features like automatic crop and deskew, as well as virtual rescan. Depending on the device type, options like finger and thumb removal, automatic width detection, or 3D scanning for authentic digitization of textured surfaces are also available.
Our software further supports seamless copying and archiving, allowing you to send documents to various destinations, including SMB, FTP, printers, email, and cloud storage.
No compromises on security
All Image Access Scanners are based on a Linux operating system, which is extremely secure and virus-resistant. Nevertheless, the device is easy and intuitive to use and, when operated over the network, fits seamlessly into any Windows work environment.
Scanner Type: simple
Scanning color mode: Color
Document Size: A3
Scanning Speed: Less than 20 ppm
Capacity: Book Capacity
Maximum Document Size: Max. 313 x 470 mm (12.3 x 18.5 inch), 18% > DIN/ISO A3
Autoformat Size Recognition: yes, crop & deskew
DIN Format: DIN A5 – DIN A3
ANSI Format: Letter, Legal
User Defined Format: yes
Scanner Resolution: 1200 x 1200 dpi Optical Resolution 1200 x 600 dpi
Pixel Dimension: 9.3 x 9.3 µm
Scan Speed Color: Maximum document size @ 300 dpi < 3 s Maximum document size @ 600 dpi < 6 s
Scan Speed Color 3D: Maximum format @ 300 dpi < 6s
Color Depth: 48 bit color, 16 bit grayscale
Scan Output: 24 bit color, 8 bit grayscale, bitonal, enhanced halftone
File Formats: Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu, DICOM, PCX, Postscript, EPS, Raw data
Scan Modes: Plain with diffused illumination, 3D with visible surface texture, UV, IR, backlight
ICC Profiles: Embedded for sRGB, Adobe RGB and native. Individual profiling via web based Scan2ICC subscription
Quality: Exceeds FADGI **** guidelines, ISO 19264-1
Computer: 64 bit Linux, Intel Core i3 generation 8 processor, 240GB SSD, 8 GB memory for extra large jobs
Touchscreen: 7 inch color WXGA (1280*800) touchscreen
USB Port: 1 x USB 3.0 port
Interface: 10 GBit Fast Ethernet with TCP/IP based Scan2Net® interface
Camera: Tri-Color CCD camera, 22,500 pixels, encapsulated and dust-proof
Light Source: Dual LED lamps with white LEDs, integrated optical diffusor, no IR/UV radiation
Lamp Lifetime: 50,000 h (typ.)
Dimensions Scanner (H x W x D): 222 x 440 x 795 mm (8.7 x 17.4 x 31.3 inch)
Weight Scanner: 30 kg (62 lbs.)
Electrical Connection: 100-240 V AC, 47 – 63 Hz (external power supply, complies with ECO standard CEC level VI)
Power Consumption: P(Off) 0.3W / P(Sleep) 4.1W / P(Ready) 28W / P(Active) 55W 49% below
Operating Temp: 5 to 40 °C (40 to 105 °F)
Rel Humidity: 20 to 80 % (non-condensing)
Noise: < 42 dB(A) (Scanning) / < 32 dB(A) (Standby)
